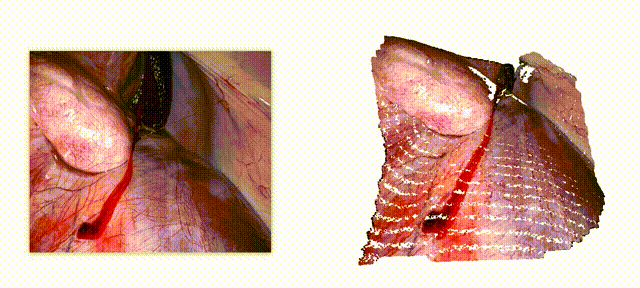

Three-dimensional (3D) reconstruction is essential for enhancing spatial perception and geometric understanding in minimally invasive surgery. However, current methods like Neural Radiance Fields (NeRF) and 3D Gaussian Splatting (3DGS) often rely on offline preprocessing—such as COLMAP-based point clouds or multi-frame fusion—limiting their adaptability and clinical deployment. We propose Endo-E2E-GS, a fully end-to-end framework that reconstructs structured 3D Gaussian fields directly from a single stereo endoscopic image pair. The system integrates (1) a DilatedResNet-based stereo depth estimator for robust geometry inference in low-texture scenes, (2) a Gaussian attribute predictor that infers per-pixel rotation, scale, and opacity, and (3) a differentiable splatting renderer for 2D view supervision. Evaluated on the ENDONERF and SCARED datasets, Endo-E2E-GS achieves highly competitive performance, reaching PSNR values of 38.874/33.052 and SSIM scores of 0.978/0.863, respectively, surpassing recent state-of-the-art approaches. It requires no explicit scene initialization and demonstrates consistent performance across two representative endoscopic datasets.

During invasive surgery, the use of deep learning techniques to acquire depth information from lesion sites in real-time is hindered by the lack of endoscopic environmental datasets. This work aims to develop a high-accuracy three-dimensional (3D) simulation model for generating image datasets and acquiring depth information in real-time. Here, we proposed an end-to-end multi-scale supervisory depth estimation network (MMDENet) model for the depth estimation of pairs of binocular images. The proposed MMDENet highlights a multi-scale feature extraction module incorporating contextual information to enhance the correspondence precision of poorly exposed regions. A multi-dimensional information-guidance refinement module is also proposed to refine the initial coarse disparity map. Statistical experimentation demonstrated a 3.14% reduction in endpoint error compared to state-of-the-art methods. With a processing time of approximately 30fps, satisfying the requirements of real-time operation applications. In order to validate the performance of the trained MMDENet in actual endoscopic images, we conduct both qualitative and quantitative analysis with 93.38% high precision, which holds great promise for applications in surgical navigation.

Depth estimation is a fundamental task in computer vision, crucial for applications such as endoscopic surgical navigation. This paper comprehensively reviews recent advancements in endoscopic depth estimation algorithms utilizing deep learning. We start by briefly describing the basic principles behind depth estimation and how depth maps can be generated from monocular and binocular cues. We then analyze the characteristics of the endoscopic dataset. Subsequently, we provide an overview of deep learning applications in endoscopic depth estimation, encompassing supervised, self-supervised, and semi-supervised learning methods. We examine each method’s principles, advantages, and disadvantages and their performance in practical applications. Additionally, we summarize the performance of current deep learning methods in endoscopic depth estimation and explore the importance of model robustness and generalization capabilities. Finally, we propose potential future research directions, such as exploring methods for collecting high-quality data or using simulated data to overcome current dataset limitations, and developing lightweight models to enhance real-time performance and robustness. This study aims to offer a comprehensive review for researchers in the field of endoscopic depth estimation, thereby fostering further development in this area.

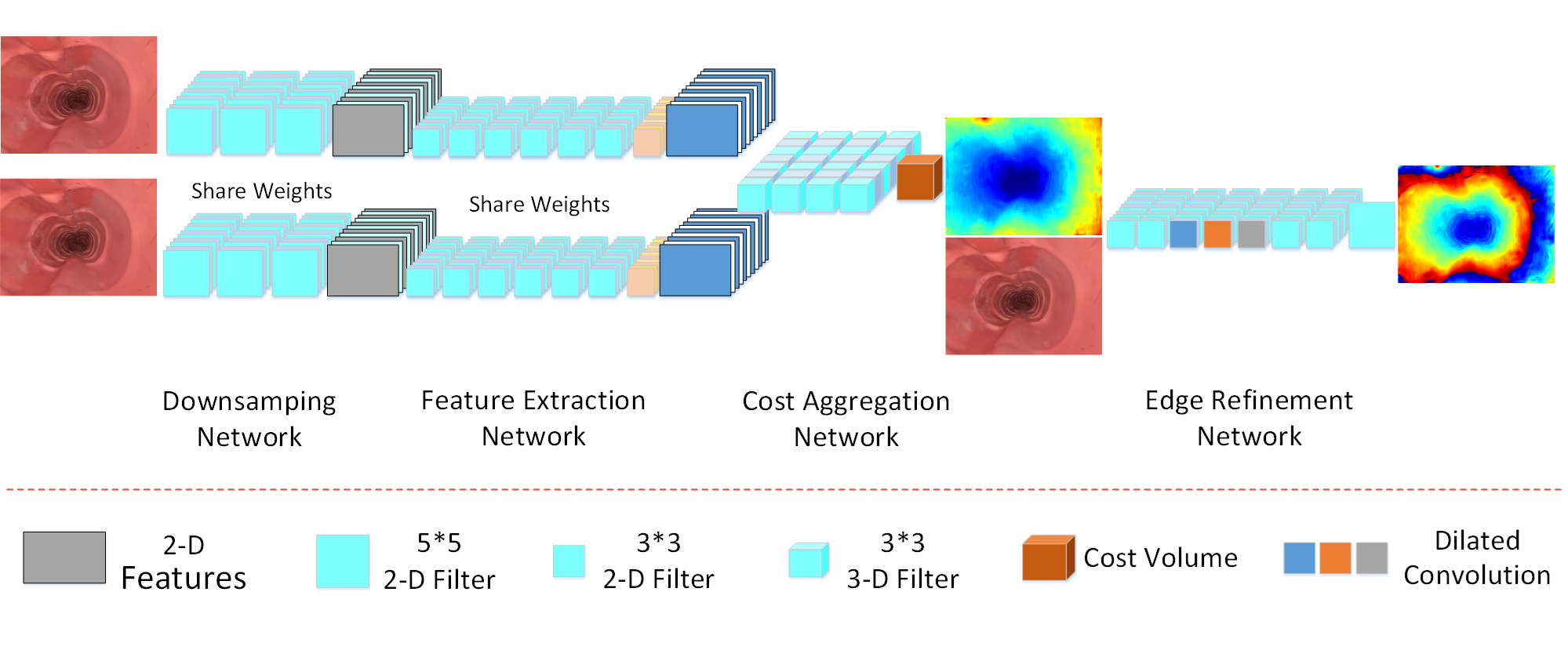

Depth mapping from binocular endoscopy images plays an important role in stereoscopic surgical treatment. Owing to the development of deep convolutional neural networks (CNNs), binocular depth estimation models have achieved many exciting results in the felds of autonomous driving and machine vision. However, the application of these methods to endoscopic imaging is greatly limited by the fact that binocular endoscopic images not only are rare, but also have unsatisfying features such as no texture, no ground truth, bad contrast, and high gloss. Aiming at solving the above-mentioned problems, we have built a precise gastrointestinal environment by the open-source software blender to simulate abundant binocular endoscopy data and proposed a 23-layer deep CNNs method to generate real-time stereo depth mapping. An effcient scale-invariant loss function is introduced in this paper to accommodate the characteristics of endoscope images, which improves the accuracy of achieved depth mapping results. Regarding the considerable training data for typical CNNs, our method requires only a few images (960 * 720 resolution) at 45 frames per second on an NVIDIA GTX 1080 GPU module, then the depth mapping information is generated in real-time with satisfactory accuracy. The effectiveness of the developed method is validated by comparing with state-of-the-art methods on processing the same datasets, demonstrating a faster and more accurate performance than other model frames.
